‹ Home › Inventory › Harley-Davidson® Tri Glide® Ultra 2020

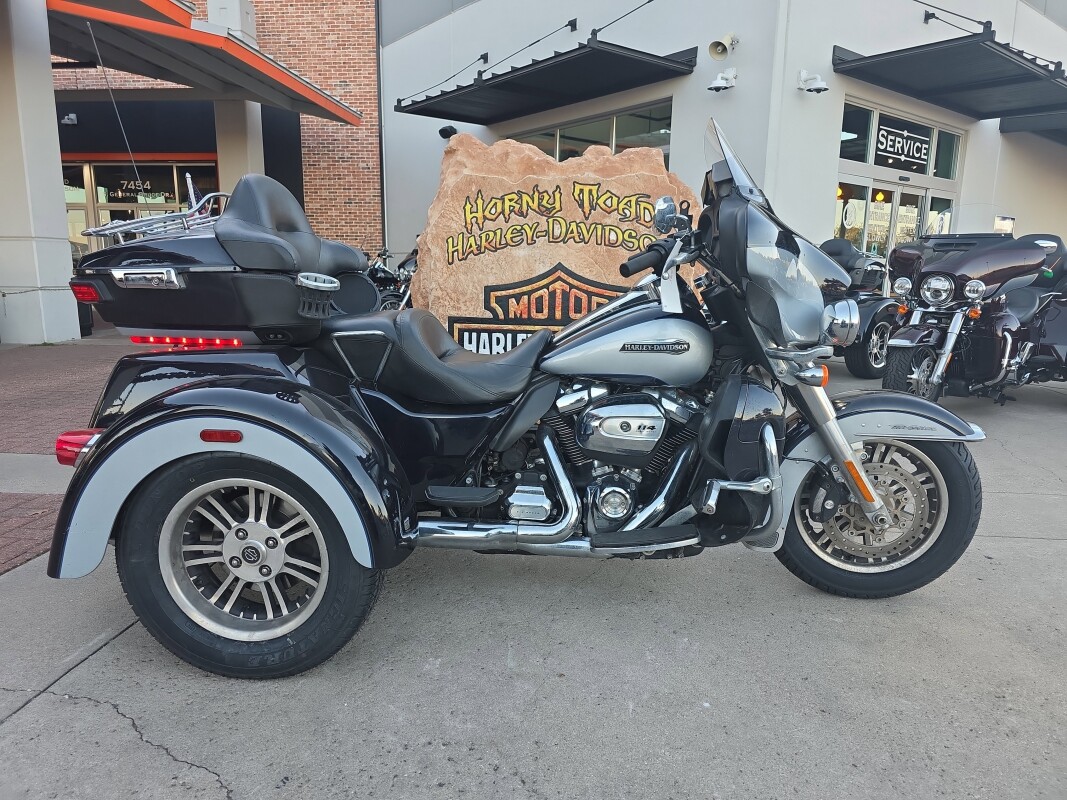

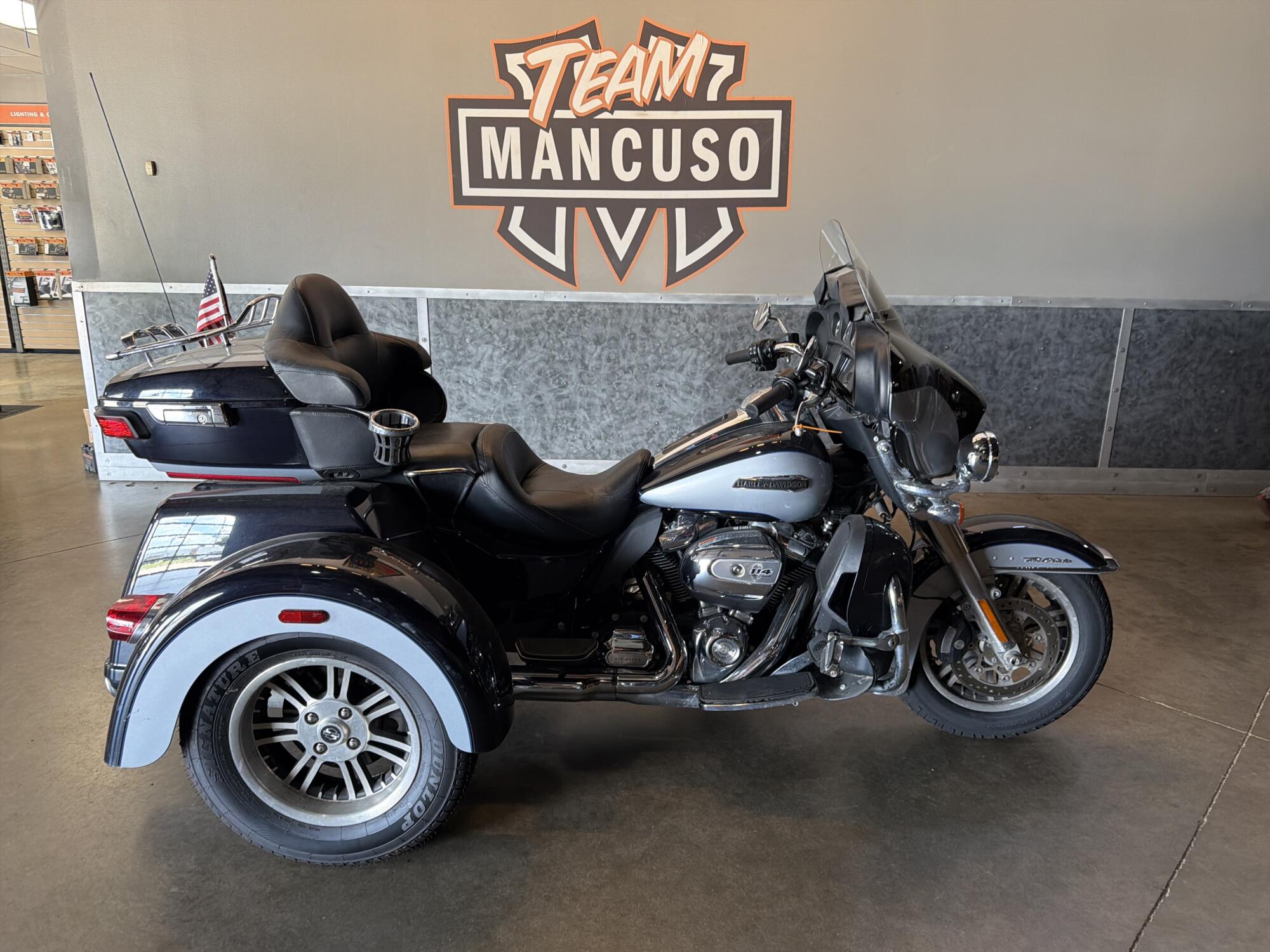

2020 Harley-Davidson® Tri Glide® UltraPREMIUM H-D® TOURING ON THREE WHEELSGet all the premium features, starting with a Twin-Cooled™ Milwaukee-Eight® 114 engine, the BOOM!™ Box GTS infotainment system and enough storage space so you can pack enough to go for a good, long time.Features may include: Twin-Cooled™ Milwaukee-Eight® 114 EngineThe most displacement in standard H-D® Touring models. You get 114 cubic inches of of passing and horizon-chasing power.H-D™ Connect ServiceWith subscription-based cellular connectivity, you can connect to your bike through your smart phone using the latest version of the Harley-Davidson® App. Check your bike's vitals including fuel level, get tamper alerts and stolen-vehicle tracking, and more.Reflex™ Defensive Rider Systems (RDRS)A new collection of technologies that help give you confidence and control in less-than-ideal situations. The systems utilize advanced chassis control, electronic brake control and powertrain technology to assist you with accelerating and braking in a straight line or while in a turn.Reflex™ Linked Brembo® Brakes with Standard ABSDesigned to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations.BOOM!™ Box GTS Infotainment SystemAn evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.6-Speed Cruise Drive® TransmissionProvides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine RPM and road speed.Trunk and King Tour-Pak® StorageThe integrated trunk offers 4.4 cubic feet and 50 pounds of storage capacity, while the injection-molded Tour-Pak® luggage carrier keeps things classy and neat with soft woven-nylon luggage liner and plenty of storage pockets.Daymaker® LED Headlamp and LED FoglampsDarkness–defying headlight so you can see and be seen.Batwing Fairing & Splitsteam Air VentDesigned to deliver smoother airflow and reduced head buffeting with a pressure-equalizing duct on the front. It opens and closes with one touch of a button.

Specifications

Dimensions

add remove
- Length:

  105.1 in
- Ground clearance:

  4.9 in
- Rake (steering head):

  26
- Trail:

  3.9 in
- Wheelbase:

  1,670.0 in
- Tires, front specifications:

  MT90B16 72H
- Tires, rear specifications:

  P205/65R15 92T
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  1,204 lbs
- Weight, in running order:

  1243 lb
- Luggage capacity – volume:

  6.8 cu ft (0.19 m3)
Engine

add remove
- Engine:

  Twin-Cooled™ Milwaukee-Eight® 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  Chrome, 2-1-2 dual exhaust with tapered mufflers
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  121.0 ft-lb
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  0.00 mpg
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  10.534
- Gear ratios (overall) 2nd:

  7.302
- Gear ratios (overall) 3rd:

  5.423
- Gear ratios (overall) 4th:

  4.392
- Gear ratios (overall) 5th:

  3.741
- Gear Ratios (overall) 6th:

  3.157
Chassis

add remove
- Wheels, front type:

  Black, 7-spoke Cast Aluminum
- Wheels, rear type:

  Black, 7-spoke Cast Aluminum
- Brakes, caliper type:

  Front: 32mm 4 piston fixed Rear: floating 36mm piston integrated park brake
Electric

add remove
- Lights (as per country regulation), indicator:

  High Beam, running lights, front fender running lights, directional lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, security system, low fuel warning, reverse, park brake, fog/aux lamp indicator
- Gauges:

  Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator
Infotainment

add remove
- Infotainment system:

  Boom!™ Box GTS
- Type:

  Full Color TFT
- Watts per channel:

  25
- Speakers:

  4
- Speaker size:

  5.25 inch/6.5 inch P&A Upgrade
- Headset specifications (if equipped):

  16 - 64 ohms
- AM:

  Standard
- FM:

  Standard
- Weather Band (WB):

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Sirius^XM Presets:

  20 - P&A Upgrade (USA & Canada only)
- Languages:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Voice Recognition Languages: Tuner / Media / Navigation:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Text-to-Speech (TTS) languages:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Rider / passenger intercom:

  Standard
- Vehicle information screen:

  Standard
- USB:

  USB/MTP/iPod/iPhone
- Bluetooth:

  Phone/Media Supported
